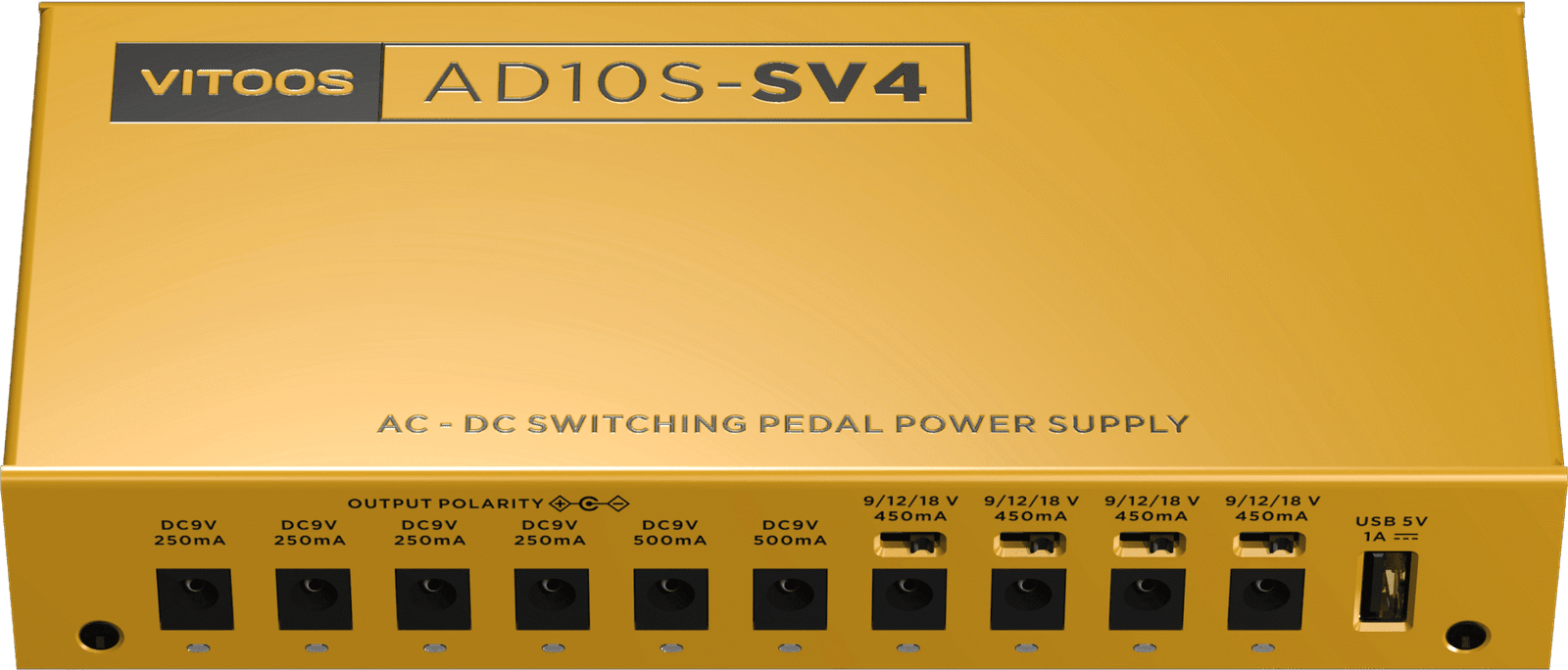

Vitoos AD10S-SV4 Power Supply

$319.00

In stock

SKU: 6973232520124 Categories: ,
Enquire About This Item
This field is for validation purposes and should be left unchanged.
Enquiry for: Vitoos AD10S-SV4 Power Supply.

Please use the form to send us an enquiry.

Add me to your mailing list
Please let us know what's on your mind. Have a question for us? Ask away.

The Vitoos AD Linkable System

The AD10S-SV4 is the perfect answer to those seeking to power 10 or more pedals at any given time. Don't let your pedals go unused, gathering dust. When you run out of power outputs on this bad boy, simply connect up an AD5S Link (sold seperately) from the IEC output, and you can run another 5 pedals with the same clean, fully isolated power.
The AD10S-SV4 is a super resilient and robust compact power supply, reliably powering up to 10 pedals at a time, with switchable voltage on outputs 7-10. We think Vitoos are making some of the best stuff on the market at the moment for a bloody good price.
Comes with all the cables you'll need to set up a medium-large pedal board, as well as mounting gear for the unit, and cable management bits.
INPUT: AC 100V~240V 50Hz/60Hz
OUTPUT 1-4: 9V 250mA
OUTPUT 5-6: 9V 500mA
OUTPUT 7-10: 9V/12V/18V 450mA

SPECIFICATIONS

SIZE 195*88*35mm
WEIGHT 605g
INPUT AC 100V~240V 50HZ/60HZ
OUTPUT POWER 55.4W(MAX)
OUTPUT CHANNELS 11
OUTPUTS 1-4 9V250mA
OUTPUTS 5-6 9V500mA
OUTPUTS 7-10 9V/12V/18V450mA
OUTPUTS 11 USB 5V1A
Short/overload
protection
YES
ISOLATED FULLY ISOLATED
