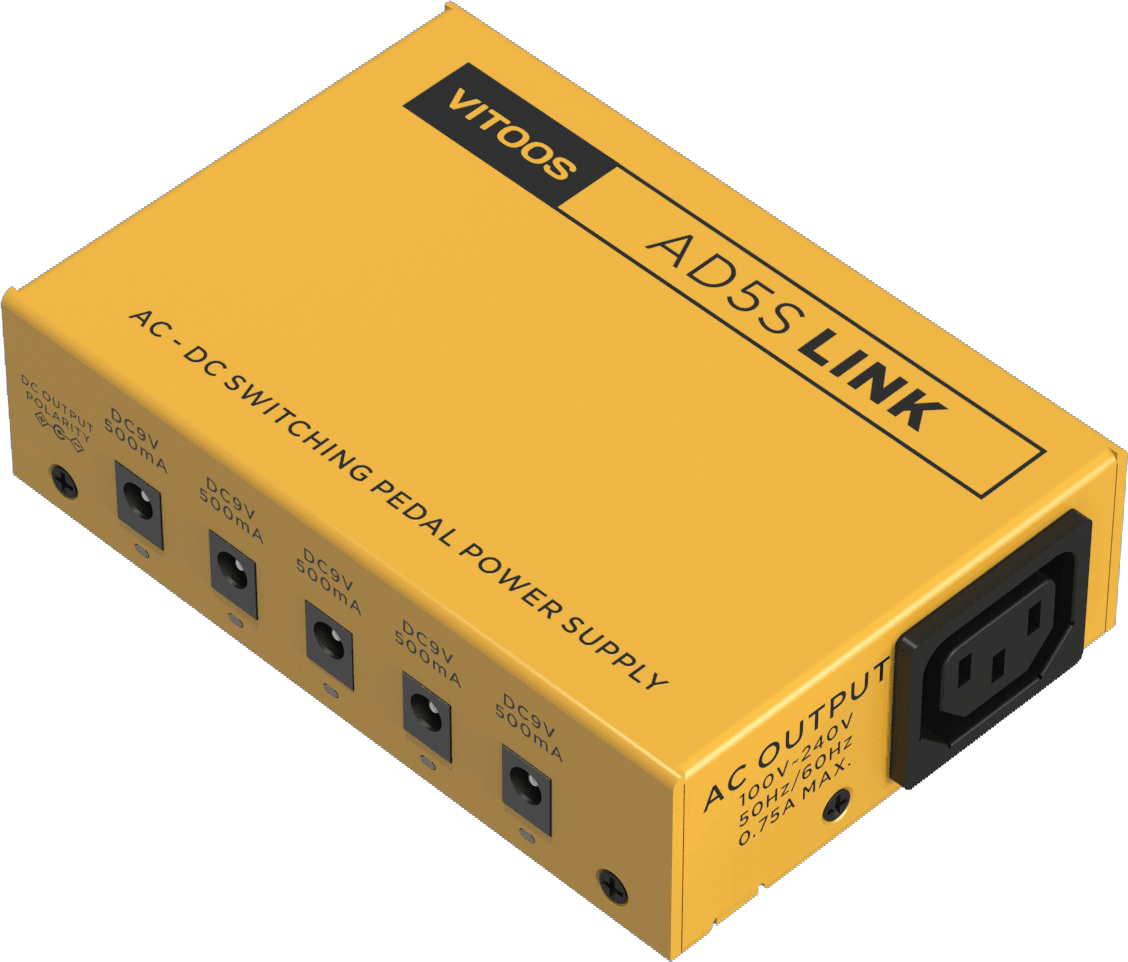

Vitoos AD5S Link Power Supply

The Vitoos AD Linkable System

Have you run out of outputs on your AD5S Pro, and don't want to replace the whole unit? Or do you just have different boards for different sounds, and need the flexibilty to occasionally run more than 5 pedals? Get one of these, and you'll be effectively doubling the amount of pedals you can run on any given board. Additionally, if you need more outputs in the future, adding on an additional AD5S Link is super easy. Like the rest of the Vitoos range, this is a fully isolated power supply, meaning you won't encounter any "power noise" from this power supply.

While the AD5S Link is designed as an easy way to expand the usability of the AD5S Pro, it is capable of running independently with the supplied IEC cable, and includes all cables needed to power 5 pedals. The AD5S Pro is only a wee bit more of a cost, but contains switchable voltage outputs, and we recommend that as a starting point with this system.

INPUT: AC 100V~240V 50Hz/60Hz
OUTPUT * 5: 9V 500mA
AC Link

SPECIFICATIONS

Size: 130*88*35mm
Weight: 400g
Input: AC 100V~240V 50Hz/60Hz
Output power: 22.5W（MAX）
Output channels: 5
Outputs 1-5: 9V 500mA
Short/overload protection: Yes
FULLY ISOLATED
