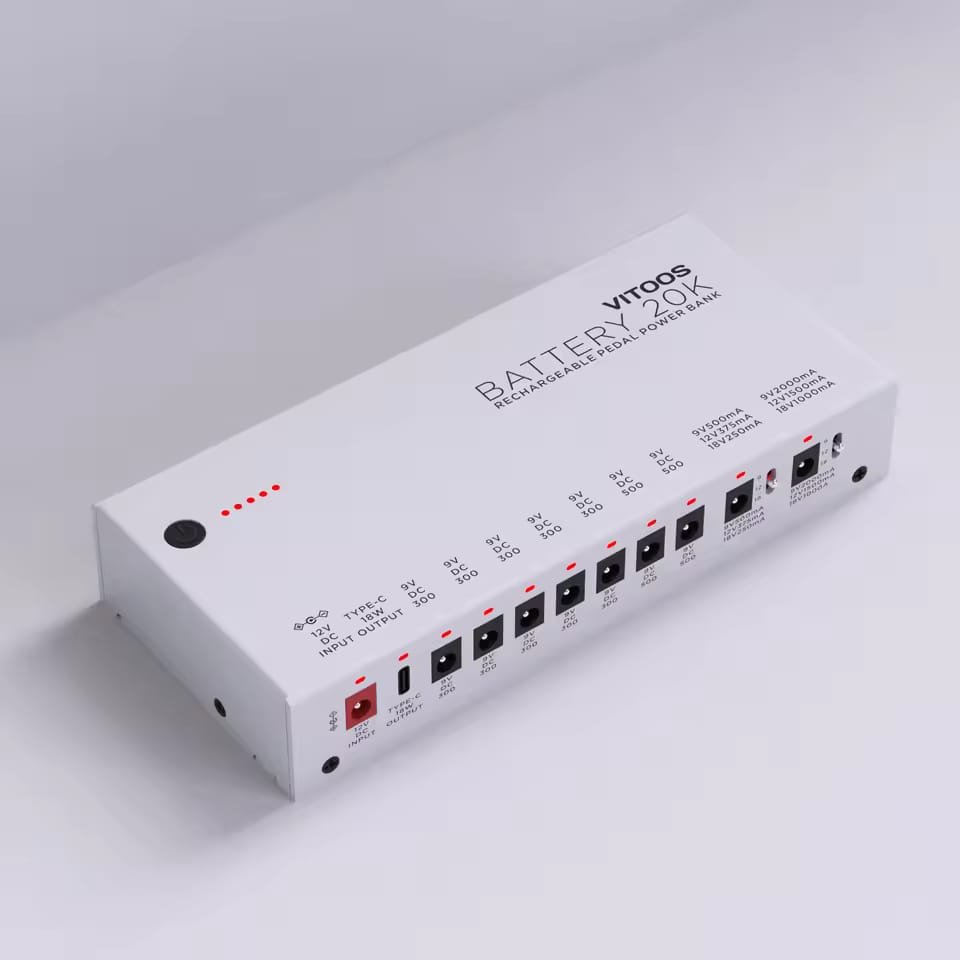

Vitoos Battery 20K Rechargable Power Supply

A quality rechargeable power supply from Vitoos.

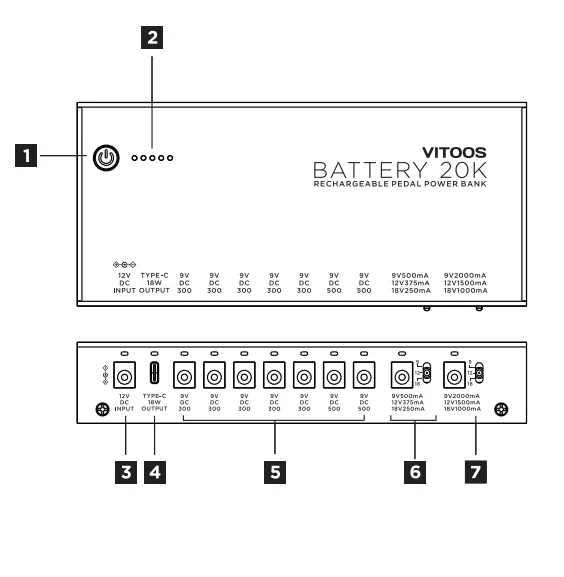

Reference for last photo:

1: Main power on/off switch.

2: LED power status indicator. Indicates battery life.

3: Input for supplied power adaptor (12V 3A). LED lights up green when battery is charged.

4: USB-C power output for charging mobile devices. Indicator LED lights up when a device is being charged.

5: Outputs 1-7 isolated, 5 x 9V 300mA, 2 x 9V 500mA. Indicator LED lights up for each output when voltage is present.

6: Output 8 isolated, switchable between 9V 0.5A, 12V 0.375A, and 18V 0.25A. Indicator LED lights up when voltage is present.

7: Output 9 not isolated, switchable between 9V 2A, 12V 1.5A, and 18V 1A. Indicator LED lights up when voltage is present.
