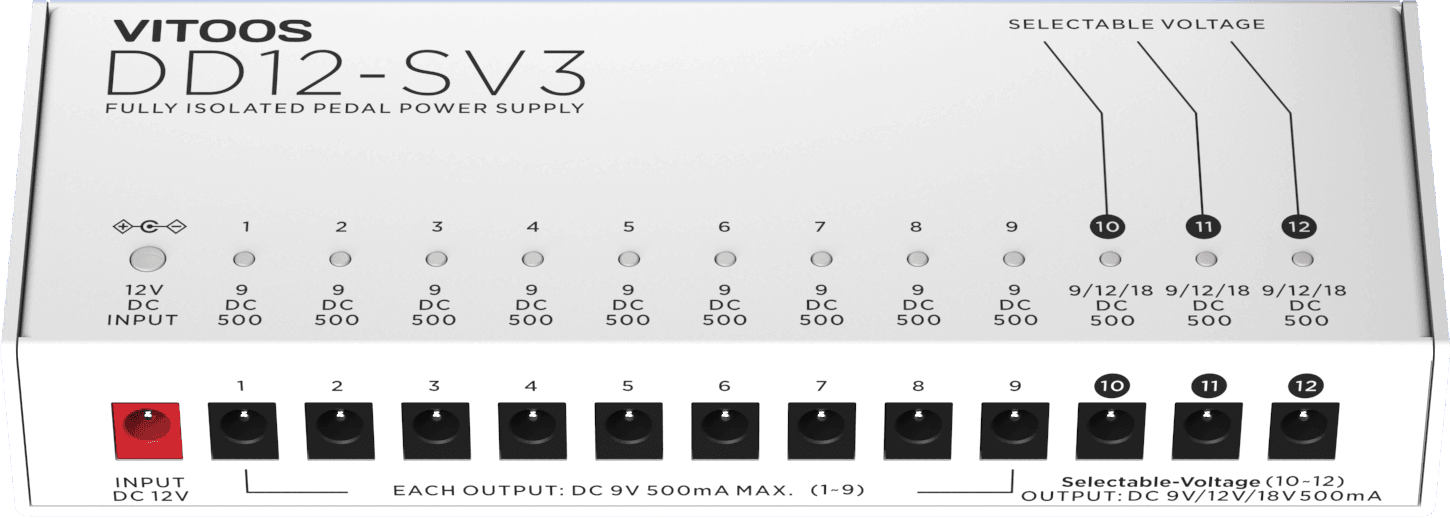

The DD12-V3 is an ideal choice for those of us who need a larger board, but don't want a bulky power supply taking up valuable pedal space. With its slimmer than average build, the DD12-V3 can power up to 12 500mA pedals at a time, with switchable voltage on channels 10-12, while remaining a reliable supply of fully isolated power.
Comes with all the cables you'll need to set up your board, as well as cable management and hook-and-loop to secure the unit.
INPUT:12V3A
OUTPUT1-9:9V 500MA
OUTPUT10-12:9V/12V/18V 500MA ADJUSTABLE
OUTPUT1-9:9V 500MA
OUTPUT10-12:9V/12V/18V 500MA ADJUSTABLE
SPECIFICATIONS
| Size | 190*70*30mm |
| Weight | 356g |
| Package size | 273 x 236 x 64 mm |
| Package weight | 1530g |
| Input | 12V3A |
| Output power | 27W(MAX) |
| Output channels | 12 |
| Outputs 1-9 | 9V500mA |
| Outputs 10-12 | 9V/12V/18V 500mA |
| Short/overload protection |
YES |
| Isolated | FULLY ISOLATED |
