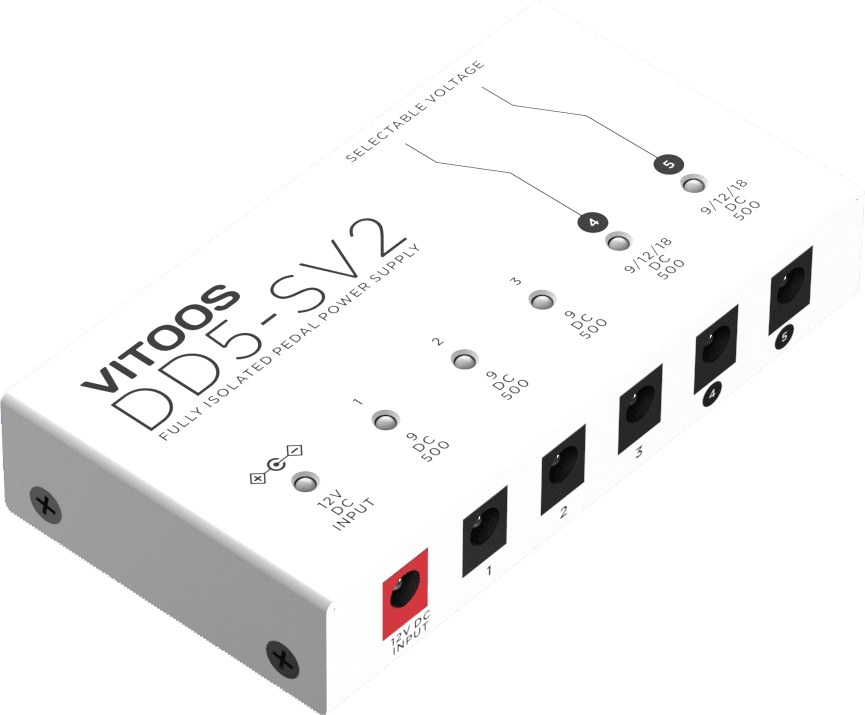

The DD5-SV2 is a super reliable power supply, while being the most cost effective and compact unit we have. Ideal for a small pedal board with limited space, requiring solid power for up to 5 pedals. The switchable output voltage on connections 4 and 5 allow for more flexible combinations of pedals without needing to run different supplies to the same board. The whole thing is fully isolated too, meaning no electrical noise is added from the power supply.

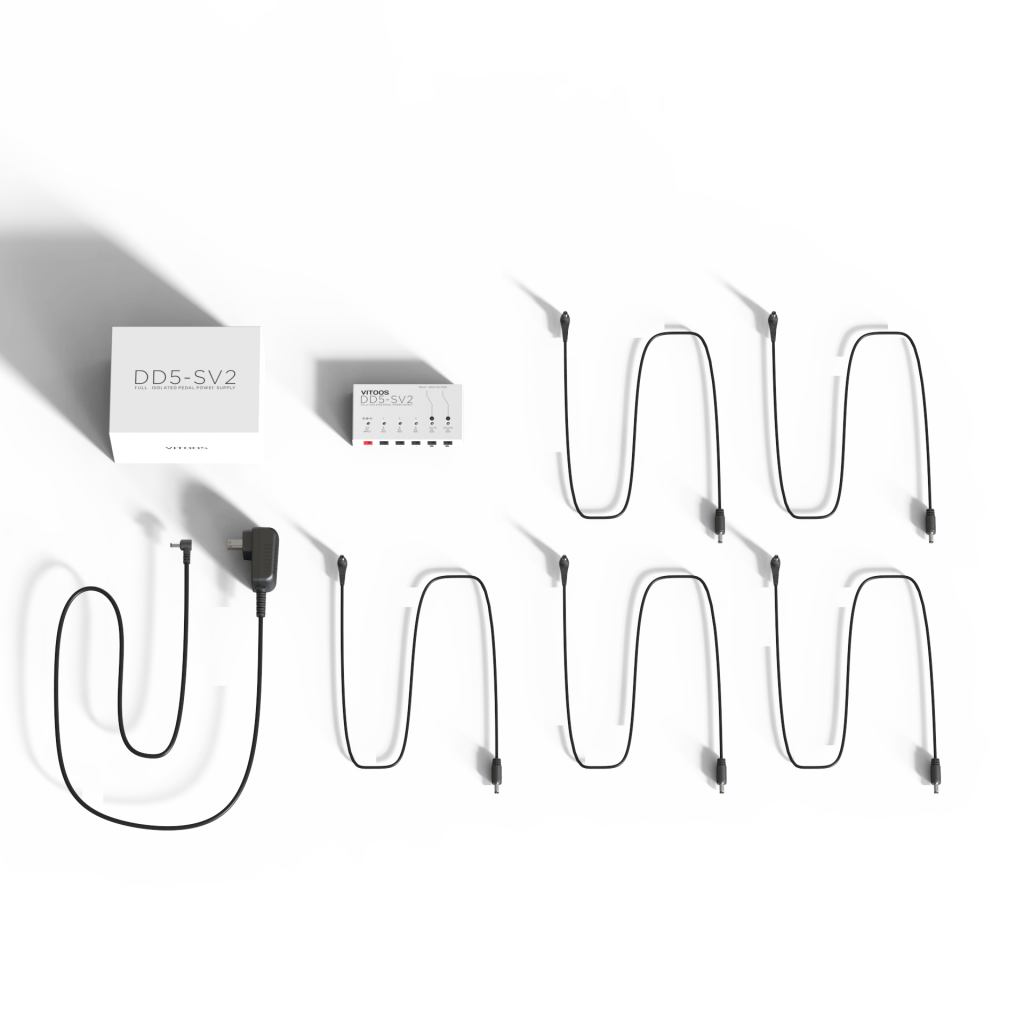

Comes with all the cables you'll need to set up your board!
Input: 12V 2A
Output 1-3: 9V 500mA
Output 4-5: 9V/12V/18V 500mA Adjustable
| Body Size |
110*60*20mm |
| Body Weight |
140g |
| Package Size |
152 x 116 x 80 mm
|
| Package Weight |
570g |
| Input |
12V 2A |
| Output Power |
27W(MAX) |
| Output Channels |
5 |
| Outputs 1-3 |
9V 500mA |
| Outputs 4-5 |
9V/12V/18V 500mA |
Short/overload protection |
YES |
| Isolated |
FULLY ISOLATED |
| |
|
